Datapoints for p + be7 -> b8

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.611376e-04
0.15 4.509467e-03
0.2 2.176800e-02
0.3 1.527061e-01
0.4 5.121755e-01
0.5 1.200789e+00
0.6 2.301039e+00
0.7 3.899134e+00
0.8 6.090141e+00
0.9 8.959893e+00
1 1.256339e+01
1.5 4.090166e+01
2 8.003103e+01
2.5 1.222788e+02
3 1.641256e+02
3.5 2.044717e+02
4 2.431304e+02
4.5 2.801892e+02
5 3.157881e+02
6 3.830947e+02
7 4.458000e+02
8 5.043913e+02
9 5.592240e+02
10 6.105926e+02

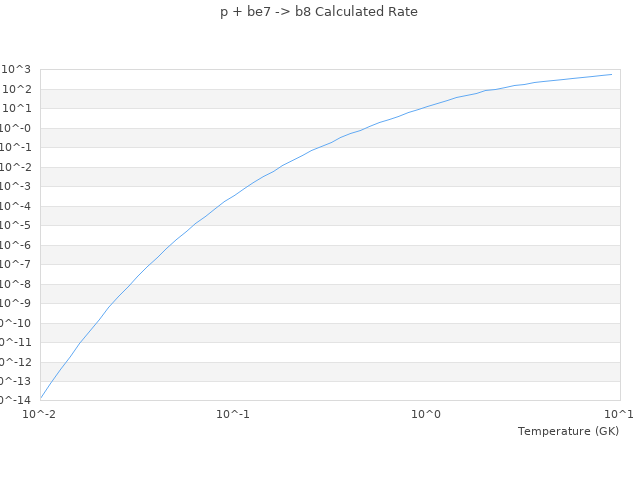

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 0.000361 0.00036113761361057 0.0381 %
0.4 0.512 0.51217551556242 0.0343 %
1 12.6 12.563390887039 0.2905 %
2 80 80.031026751905 0.0388 %
