Datapoints for p + os223 -> n + ir223
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.030391e-147 |
| 0.15 | 2.355762e-86 |
| 0.2 | 6.587833e-57 |
| 0.3 | 3.878942e-31 |
| 0.4 | 2.765811e-21 |
| 0.5 | 6.034803e-17 |
| 0.6 | 7.848805e-15 |
| 0.7 | 1.113666e-13 |
| 0.8 | 5.993072e-13 |
| 0.9 | 2.158792e-12 |
| 1 | 6.786994e-12 |
| 1.5 | 3.062857e-09 |
| 2 | 2.732939e-06 |
| 2.5 | 1.397742e-03 |
| 3 | 2.164256e-01 |
| 3.5 | 8.832737e+00 |
| 4 | 1.052275e+02 |
| 4.5 | 4.486221e+02 |
| 5 | 8.686109e+02 |
| 6 | 7.918222e+02 |
| 7 | 4.655992e+02 |
| 8 | 7.761612e+02 |
| 9 | 1.222758e+04 |
| 10 | 4.816127e+06 |

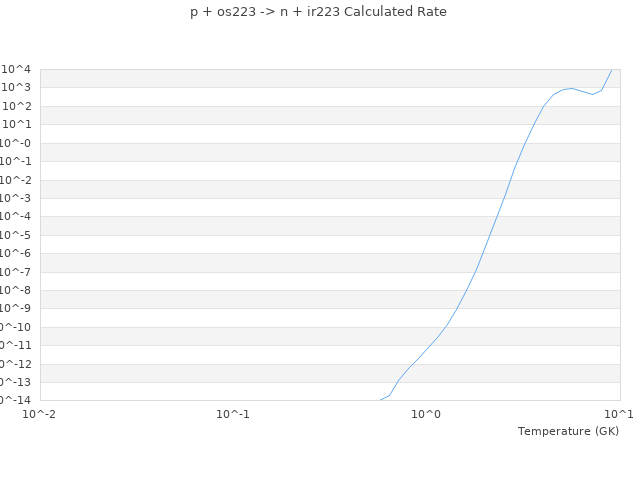

| View Graph | |
