Datapoints for n + ir226 -> p + os226
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-317 |
| 0.3 | 2.940957e-205 |
| 0.4 | 3.766373e-152 |
| 0.5 | 7.262289e-122 |
| 0.6 | 1.867518e-102 |
| 0.7 | 6.000452e-89 |
| 0.8 | 5.982219e-79 |
| 0.9 | 3.496131e-71 |
| 1 | 6.473242e-65 |
| 1.5 | 6.247580e-45 |
| 2 | 2.702997e-33 |
| 2.5 | 2.301452e-25 |
| 3 | 1.087438e-19 |
| 3.5 | 1.368687e-15 |
| 4 | 1.195799e-12 |
| 4.5 | 1.432392e-10 |
| 5 | 3.978849e-09 |
| 6 | 1.950236e-07 |
| 7 | 1.965970e-06 |
| 8 | 2.784097e-05 |
| 9 | 2.366353e-03 |
| 10 | 3.713992e+00 |

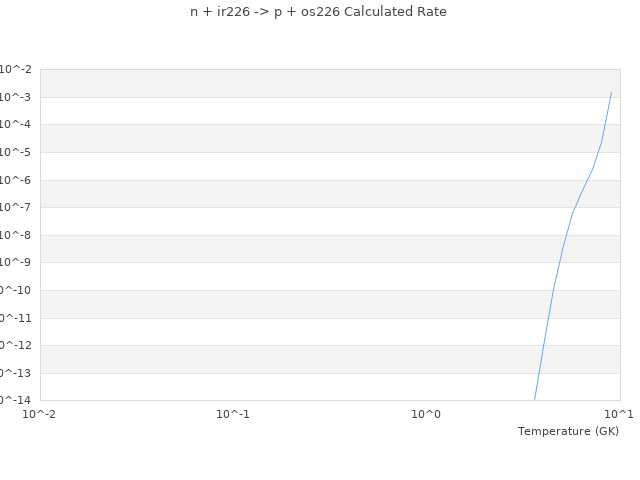

| View Graph | |
