Datapoints for n + pt236 -> he4 + os233
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-313 |
| 0.3 | 2.962633e-212 |
| 0.4 | 2.280331e-159 |
| 0.5 | 6.010591e-127 |
| 0.6 | 3.639567e-105 |
| 0.7 | 1.332463e-89 |
| 0.8 | 5.664189e-78 |
| 0.9 | 5.542314e-69 |
| 1 | 7.699498e-62 |
| 1.5 | 8.934376e-41 |
| 2 | 2.111819e-30 |
| 2.5 | 4.406116e-24 |
| 3 | 1.062317e-19 |
| 3.5 | 2.138145e-16 |
| 4 | 9.154173e-14 |
| 4.5 | 1.366678e-11 |
| 5 | 9.460127e-10 |
| 6 | 8.613396e-07 |
| 7 | 1.577992e-04 |
| 8 | 8.908979e-03 |
| 9 | 2.009337e-01 |
| 10 | 2.163403e+00 |

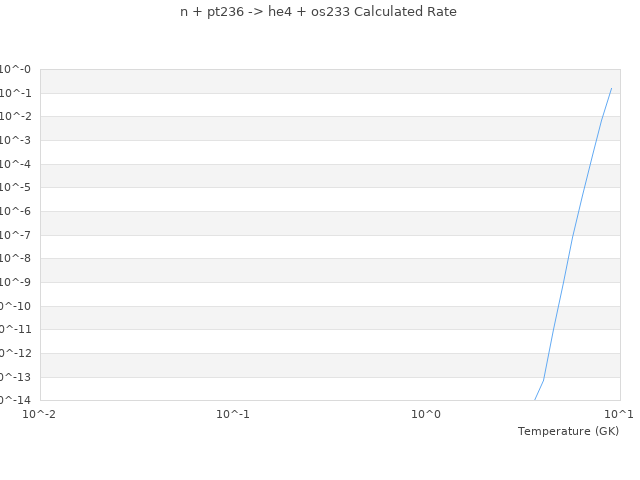

| View Graph | |
