Datapoints for p + os247 -> ir248
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.965846e-203 |
| 0.15 | 3.659618e-123 |
| 0.2 | 3.196643e-83 |
| 0.3 | 6.633067e-47 |
| 0.4 | 2.801281e-32 |
| 0.5 | 1.541002e-25 |
| 0.6 | 3.684786e-22 |
| 0.7 | 2.426285e-20 |
| 0.8 | 2.816665e-19 |
| 0.9 | 1.408851e-18 |
| 1 | 4.756878e-18 |
| 1.5 | 8.791625e-16 |
| 2 | 3.041583e-13 |
| 2.5 | 9.056745e-11 |
| 3 | 1.102253e-08 |
| 3.5 | 4.159466e-07 |
| 4 | 4.860023e-06 |
| 4.5 | 2.009639e-05 |
| 5 | 3.565745e-05 |
| 6 | 2.075814e-05 |
| 7 | 4.994949e-06 |
| 8 | 2.130209e-06 |
| 9 | 5.454393e-06 |
| 10 | 2.295080e-04 |

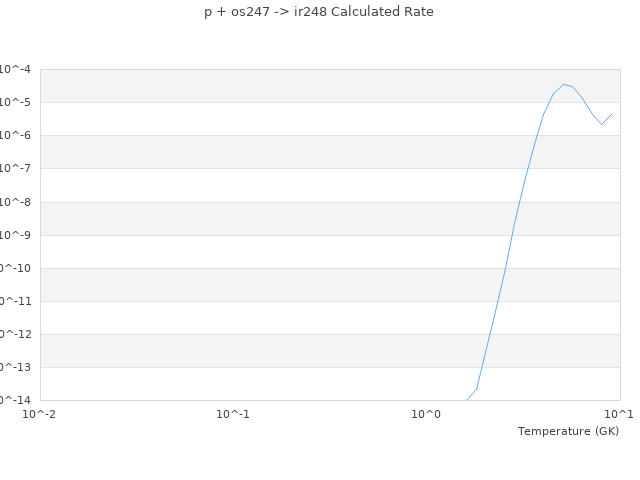

| View Graph | |
