Datapoints for ir177 -> n + ir176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-315 |
| 0.2 | 3.853051e-232 |
| 0.3 | 1.038700e-148 |
| 0.4 | 5.850960e-107 |
| 0.5 | 6.932693e-82 |
| 0.6 | 3.750729e-65 |
| 0.7 | 3.469496e-53 |
| 0.8 | 3.359163e-44 |
| 0.9 | 3.348012e-37 |
| 1 | 1.354046e-31 |
| 1.5 | 1.049206e-14 |
| 2 | 3.396747e-06 |
| 2.5 | 4.677050e-01 |
| 3 | 1.285042e+03 |
| 3.5 | 3.677756e+05 |
| 4 | 2.510571e+07 |
| 4.5 | 6.487212e+08 |
| 5 | 8.380698e+09 |
| 6 | 3.358527e+11 |
| 7 | 3.760662e+12 |
| 8 | 1.805570e+13 |
| 9 | 4.734120e+13 |
| 10 | 7.859094e+13 |

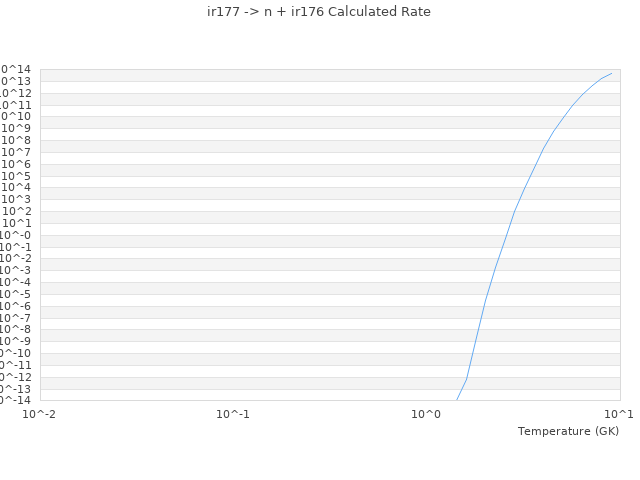

| View Graph | |
