Datapoints for n + ir176 -> p + os176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.603007e+06 |
| 0.15 | 9.702362e+06 |
| 0.2 | 1.093074e+07 |
| 0.3 | 1.188053e+07 |
| 0.4 | 1.194750e+07 |
| 0.5 | 1.174688e+07 |
| 0.6 | 1.150966e+07 |
| 0.7 | 1.132089e+07 |
| 0.8 | 1.120961e+07 |
| 0.9 | 1.118330e+07 |
| 1 | 1.124144e+07 |
| 1.5 | 1.269888e+07 |
| 2 | 1.600849e+07 |
| 2.5 | 2.136656e+07 |
| 3 | 2.918867e+07 |
| 3.5 | 3.992168e+07 |
| 4 | 5.385742e+07 |
| 4.5 | 7.092560e+07 |
| 5 | 9.049728e+07 |
| 6 | 1.312825e+08 |
| 7 | 1.596617e+08 |
| 8 | 1.600462e+08 |
| 9 | 1.309169e+08 |
| 10 | 8.687868e+07 |

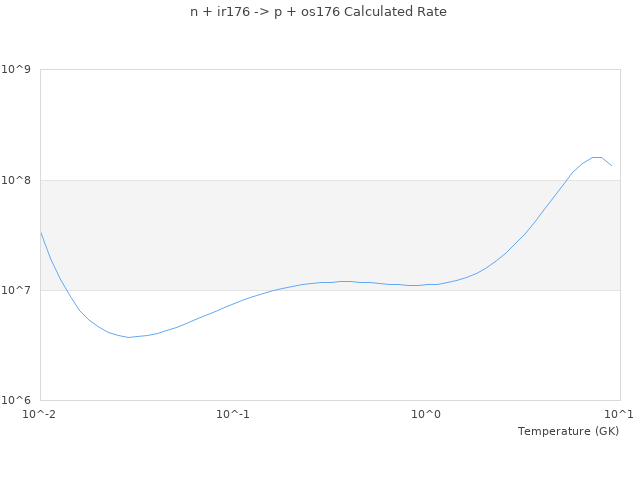

| View Graph | |
