Datapoints for p + os177 -> n + ir177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.729598e-220 |
| 0.2 | 9.213675e-164 |
| 0.3 | 5.144929e-107 |
| 0.4 | 1.253697e-78 |
| 0.5 | 1.376092e-61 |
| 0.6 | 3.203288e-50 |
| 0.7 | 4.272980e-42 |
| 0.8 | 5.370733e-36 |
| 0.9 | 3.013501e-31 |
| 1 | 1.919411e-27 |
| 1.5 | 5.601136e-16 |
| 2 | 3.552279e-10 |
| 2.5 | 1.220588e-06 |
| 3 | 3.056411e-04 |
| 3.5 | 1.691799e-02 |
| 4 | 3.596801e-01 |
| 4.5 | 3.986754e+00 |
| 5 | 2.765186e+01 |
| 6 | 4.979193e+02 |
| 7 | 3.613116e+03 |
| 8 | 1.383508e+04 |
| 9 | 3.245638e+04 |
| 10 | 5.102438e+04 |

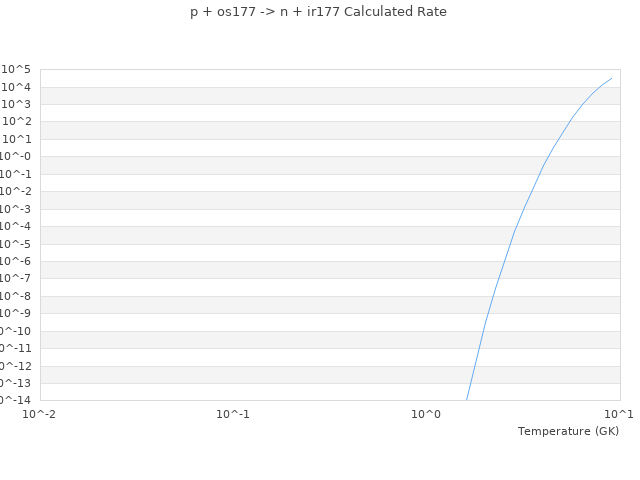

| View Graph | |
