Datapoints for n + ir177 -> he4 + re174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.420457e+05 |
| 0.15 | 4.091832e+05 |
| 0.2 | 4.460751e+05 |
| 0.3 | 4.965893e+05 |
| 0.4 | 5.443832e+05 |
| 0.5 | 5.973651e+05 |
| 0.6 | 6.570386e+05 |
| 0.7 | 7.236719e+05 |
| 0.8 | 7.972851e+05 |
| 0.9 | 8.778688e+05 |
| 1 | 9.654296e+05 |
| 1.5 | 1.509298e+06 |
| 2 | 2.235096e+06 |
| 2.5 | 3.148909e+06 |
| 3 | 4.254523e+06 |
| 3.5 | 5.554445e+06 |
| 4 | 7.051611e+06 |
| 4.5 | 8.751094e+06 |
| 5 | 1.066164e+07 |
| 6 | 1.517716e+07 |
| 7 | 2.079063e+07 |
| 8 | 2.783648e+07 |
| 9 | 3.684677e+07 |
| 10 | 4.863752e+07 |

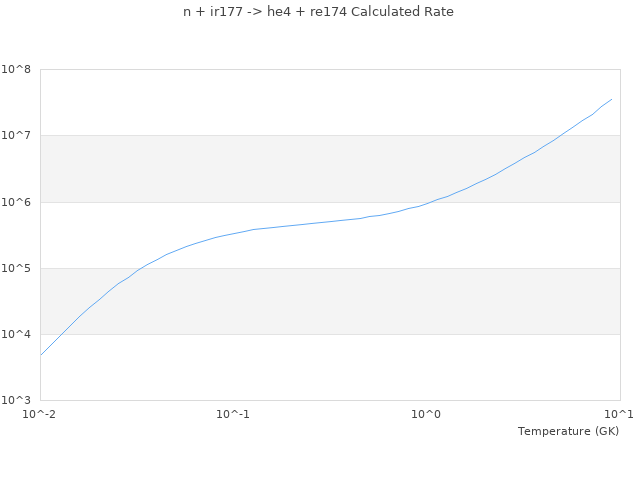

| View Graph | |
