Datapoints for p + ir177 -> pt178
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.028256e-140 |
| 0.15 | 5.150304e-84 |
| 0.2 | 2.440720e-56 |
| 0.3 | 8.054530e-32 |
| 0.4 | 3.199317e-22 |
| 0.5 | 7.461410e-18 |
| 0.6 | 1.242627e-15 |
| 0.7 | 2.312070e-14 |
| 0.8 | 1.583578e-13 |
| 0.9 | 6.936504e-13 |
| 1 | 2.530591e-12 |
| 1.5 | 1.426965e-09 |
| 2 | 1.037122e-06 |
| 2.5 | 3.931792e-04 |
| 3 | 4.654830e-02 |
| 3.5 | 1.552225e+00 |
| 4 | 1.611315e+01 |
| 4.5 | 6.273827e+01 |
| 5 | 1.136532e+02 |
| 6 | 8.869001e+01 |
| 7 | 3.745300e+01 |
| 8 | 3.240117e+01 |
| 9 | 1.696528e+02 |
| 10 | 1.291235e+04 |

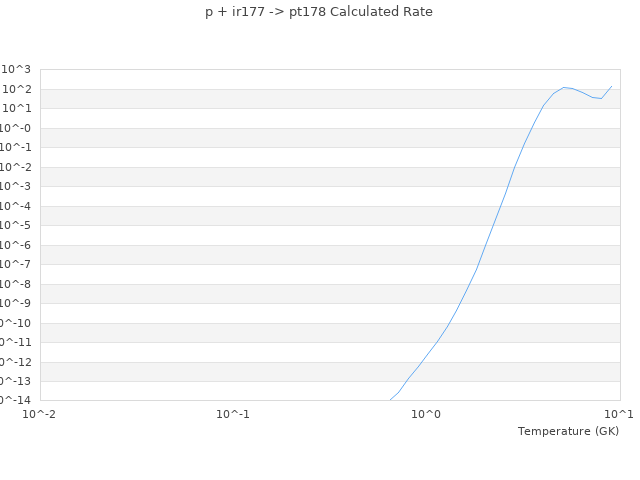

| View Graph | |
