Datapoints for p + ir196 -> n + pt196
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.343083e-143 |
| 0.15 | 1.130989e-84 |
| 0.2 | 3.847865e-56 |
| 0.3 | 3.264766e-31 |
| 0.4 | 1.031498e-21 |
| 0.5 | 1.507330e-17 |
| 0.6 | 1.576528e-15 |
| 0.7 | 1.970514e-14 |
| 0.8 | 9.814389e-14 |
| 0.9 | 3.367371e-13 |
| 1 | 1.026465e-12 |
| 1.5 | 4.484070e-10 |
| 2 | 4.234539e-07 |
| 2.5 | 2.393635e-04 |
| 3 | 4.183653e-02 |
| 3.5 | 1.931845e+00 |
| 4 | 2.566980e+01 |
| 4.5 | 1.185961e+02 |
| 5 | 2.387622e+02 |
| 6 | 1.995094e+02 |
| 7 | 8.173135e+01 |
| 8 | 6.865391e+01 |
| 9 | 3.800182e+02 |
| 10 | 3.568661e+04 |

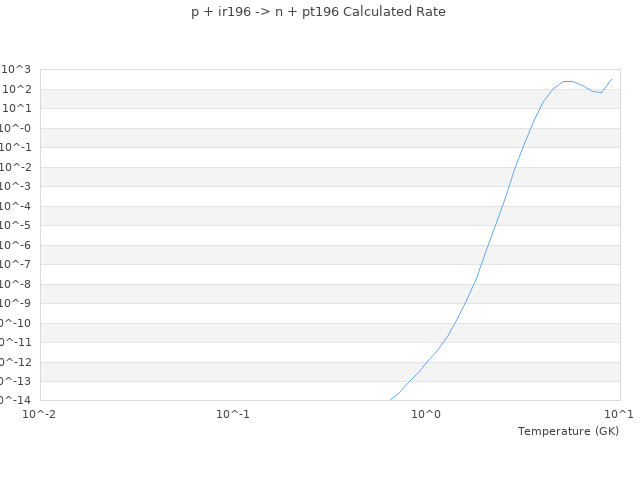

| View Graph | |
