Datapoints for he4 + os197 -> p + ir200
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-312 |
| 0.3 | 2.779638e-202 |
| 0.4 | 2.887765e-149 |
| 0.5 | 7.417544e-119 |
| 0.6 | 1.784366e-99 |
| 0.7 | 3.519617e-86 |
| 0.8 | 1.539765e-76 |
| 0.9 | 3.120144e-69 |
| 1 | 1.722453e-63 |
| 1.5 | 2.396595e-46 |
| 2 | 4.784670e-37 |
| 2.5 | 1.170973e-30 |
| 3 | 8.448536e-26 |
| 3.5 | 6.209637e-22 |
| 4 | 8.694572e-19 |
| 4.5 | 3.414244e-16 |
| 5 | 4.953117e-14 |
| 6 | 1.195680e-10 |
| 7 | 4.619453e-08 |
| 8 | 7.685609e-06 |
| 9 | 1.195707e-03 |
| 10 | 3.242096e-01 |

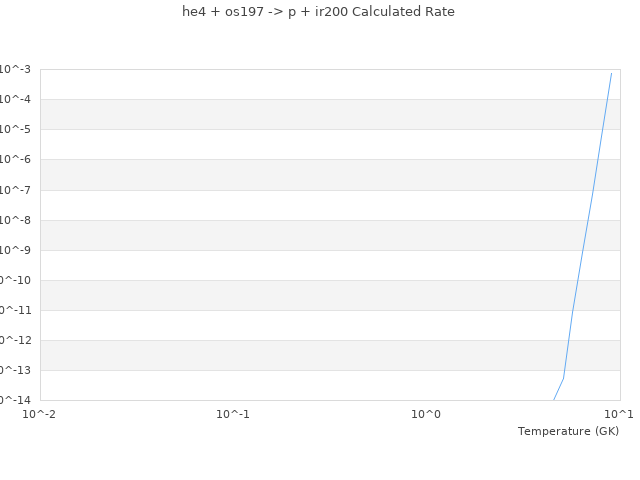

| View Graph | |
