Datapoints for p + ir206 -> n + pt206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.220954e-146 |
| 0.15 | 4.336063e-86 |
| 0.2 | 4.563752e-57 |
| 0.3 | 1.083382e-31 |
| 0.4 | 5.264212e-22 |
| 0.5 | 9.545831e-18 |
| 0.6 | 1.129772e-15 |
| 0.7 | 1.528500e-14 |
| 0.8 | 8.051145e-14 |
| 0.9 | 2.883610e-13 |
| 1 | 9.104353e-13 |
| 1.5 | 4.498511e-10 |
| 2 | 4.611159e-07 |
| 2.5 | 2.766364e-04 |
| 3 | 5.078337e-02 |
| 3.5 | 2.465892e+00 |
| 4 | 3.486934e+01 |
| 4.5 | 1.751493e+02 |
| 5 | 3.948799e+02 |
| 6 | 4.645032e+02 |
| 7 | 3.237442e+02 |
| 8 | 5.774140e+02 |
| 9 | 8.671256e+03 |
| 10 | 2.872423e+06 |

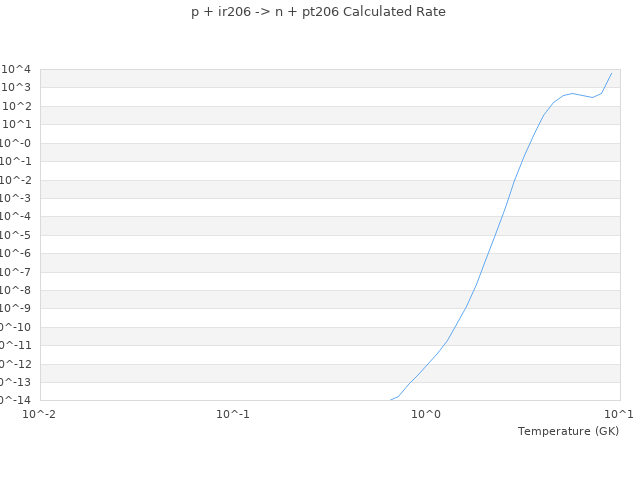

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
