Datapoints for n + pt207 -> p + ir207
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | INFe-316 |
| 0.2 | 1.277454e-229 |
| 0.3 | 6.582290e-147 |
| 0.4 | 1.628865e-108 |
| 0.5 | 5.218068e-87 |
| 0.6 | 2.010783e-73 |
| 0.7 | 4.652737e-64 |
| 0.8 | 3.722483e-57 |
| 0.9 | 8.660719e-52 |
| 1 | 1.951866e-47 |
| 1.5 | 3.689047e-33 |
| 2 | 2.408541e-24 |
| 2.5 | 4.408082e-18 |
| 3 | 1.696152e-13 |
| 3.5 | 3.726723e-10 |
| 4 | 9.138521e-08 |
| 4.5 | 4.199503e-06 |
| 5 | 5.537960e-05 |
| 6 | 9.129058e-04 |
| 7 | 4.164525e-03 |
| 8 | 3.034346e-02 |
| 9 | 1.365192e+00 |
| 10 | 1.094549e+03 |

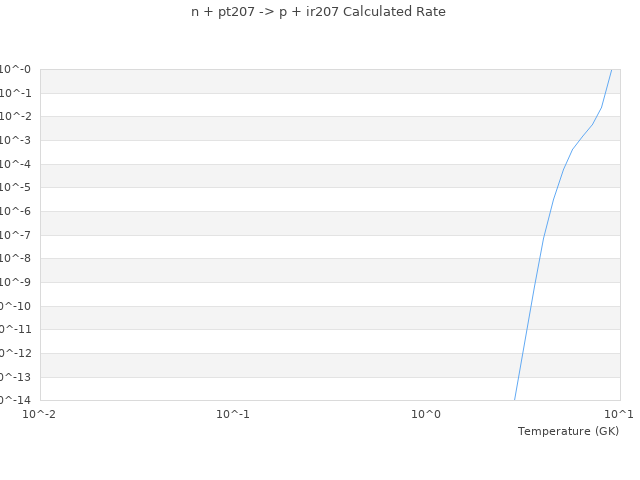

| View Graph | |
