Datapoints for p + ir208 -> pt209
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.851842e-193 |
| 0.15 | 8.012492e-117 |
| 0.2 | 9.620347e-79 |
| 0.3 | 4.951556e-44 |
| 0.4 | 5.538808e-30 |
| 0.5 | 1.840289e-23 |
| 0.6 | 3.699337e-20 |
| 0.7 | 2.355356e-18 |
| 0.8 | 2.801576e-17 |
| 0.9 | 1.465537e-16 |
| 1 | 5.191515e-16 |
| 1.5 | 1.099522e-13 |
| 2 | 3.751932e-11 |
| 2.5 | 1.060230e-08 |
| 3 | 1.255834e-06 |
| 3.5 | 4.848083e-05 |
| 4 | 6.119313e-04 |
| 4.5 | 2.872117e-03 |
| 5 | 6.021774e-03 |
| 6 | 5.285939e-03 |
| 7 | 1.976214e-03 |
| 8 | 1.247634e-03 |
| 9 | 4.217515e-03 |
| 10 | 1.978221e-01 |

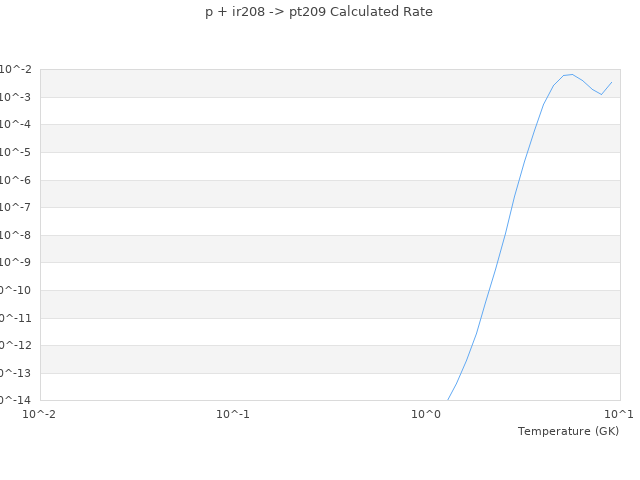

| View Graph | |
