Datapoints for n + ir209 -> he4 + re206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.851916e-195 |
| 0.15 | 4.288472e-130 |
| 0.2 | 2.776590e-98 |
| 0.3 | 1.403540e-67 |
| 0.4 | 7.015024e-53 |
| 0.5 | 2.622249e-44 |
| 0.6 | 1.154606e-38 |
| 0.7 | 1.264088e-34 |
| 0.8 | 1.498363e-31 |
| 0.9 | 4.229169e-29 |
| 1 | 4.485916e-27 |
| 1.5 | 2.950239e-20 |
| 2 | 5.935235e-16 |
| 2.5 | 8.723604e-13 |
| 3 | 2.631573e-10 |
| 3.5 | 2.627473e-08 |
| 4 | 1.144810e-06 |
| 4.5 | 2.617089e-05 |
| 5 | 3.589836e-04 |
| 6 | 2.161913e-02 |
| 7 | 4.614958e-01 |
| 8 | 5.343442e+00 |
| 9 | 4.586307e+01 |
| 10 | 3.701042e+02 |

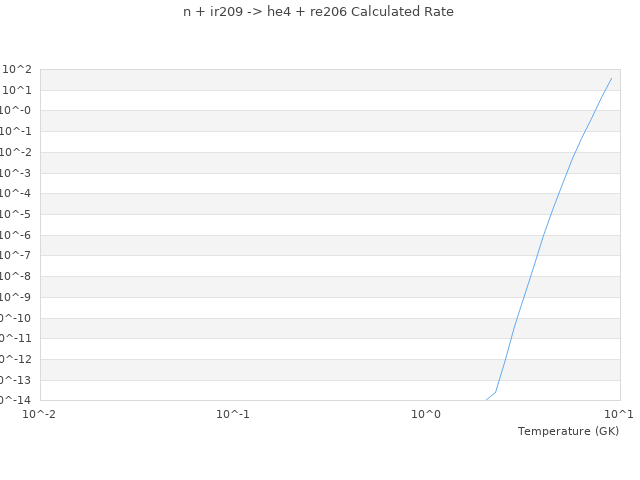

| View Graph | |
