Datapoints for p + ir209 -> he4 + os206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.898058e-221 |
| 0.15 | 1.146412e-139 |
| 0.2 | 1.326446e-97 |
| 0.3 | 7.180884e-58 |
| 0.4 | 7.378977e-41 |
| 0.5 | 1.910640e-32 |
| 0.6 | 7.097480e-28 |
| 0.7 | 3.385333e-25 |
| 0.8 | 1.663788e-23 |
| 0.9 | 2.396558e-22 |
| 1 | 1.760440e-21 |
| 1.5 | 1.746908e-18 |
| 2 | 8.769248e-16 |
| 2.5 | 3.412788e-13 |
| 3 | 6.776861e-11 |
| 3.5 | 5.541310e-09 |
| 4 | 1.813940e-07 |
| 4.5 | 2.569750e-06 |
| 5 | 1.794672e-05 |
| 6 | 1.935919e-04 |
| 7 | 7.782440e-04 |
| 8 | 3.580547e-03 |
| 9 | 4.927833e-02 |
| 10 | 4.538918e+00 |

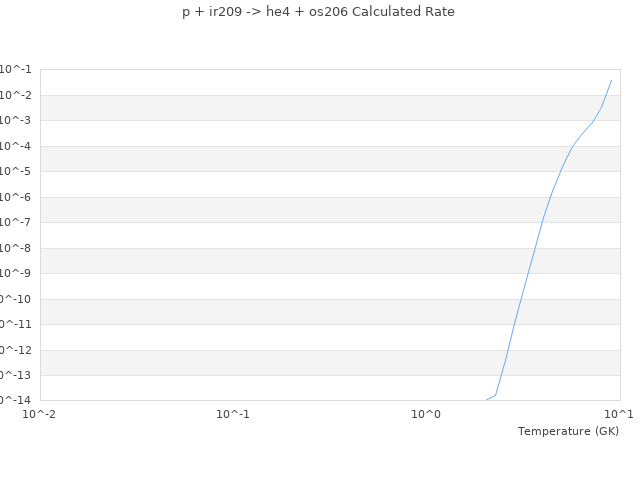

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
