Datapoints for n + ir216 -> ir217
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.697328e+07 |
| 0.15 | 2.066520e+07 |
| 0.2 | 1.992178e+07 |
| 0.3 | 1.539698e+07 |
| 0.4 | 1.149163e+07 |
| 0.5 | 8.777067e+06 |
| 0.6 | 6.911983e+06 |
| 0.7 | 5.596848e+06 |
| 0.8 | 4.638699e+06 |
| 0.9 | 3.918214e+06 |
| 1 | 3.360760e+06 |
| 1.5 | 1.801630e+06 |
| 2 | 1.081883e+06 |
| 2.5 | 6.700123e+05 |
| 3 | 4.136049e+05 |
| 3.5 | 2.506903e+05 |
| 4 | 1.481869e+05 |
| 4.5 | 8.519285e+04 |
| 5 | 4.759782e+04 |
| 6 | 1.365909e+04 |
| 7 | 3.526556e+03 |
| 8 | 8.268372e+02 |
| 9 | 1.776759e+02 |
| 10 | 3.528726e+01 |

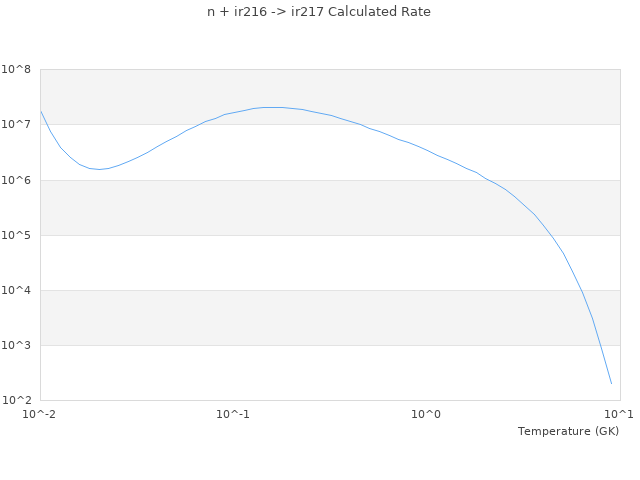

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
