Datapoints for n + ir220 -> ir221
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.408741e+07 |
| 0.15 | 1.904342e+07 |
| 0.2 | 1.865240e+07 |
| 0.3 | 1.387516e+07 |
| 0.4 | 9.821062e+06 |
| 0.5 | 7.159079e+06 |
| 0.6 | 5.429477e+06 |
| 0.7 | 4.268280e+06 |
| 0.8 | 3.457038e+06 |
| 0.9 | 2.868325e+06 |
| 1 | 2.426279e+06 |
| 1.5 | 1.255060e+06 |
| 2 | 7.428614e+05 |
| 2.5 | 4.541137e+05 |
| 3 | 2.754806e+05 |
| 3.5 | 1.631644e+05 |
| 4 | 9.377086e+04 |
| 4.5 | 5.220445e+04 |
| 5 | 2.816896e+04 |
| 6 | 7.516625e+03 |
| 7 | 1.810293e+03 |
| 8 | 4.000696e+02 |
| 9 | 8.234919e+01 |
| 10 | 1.599238e+01 |

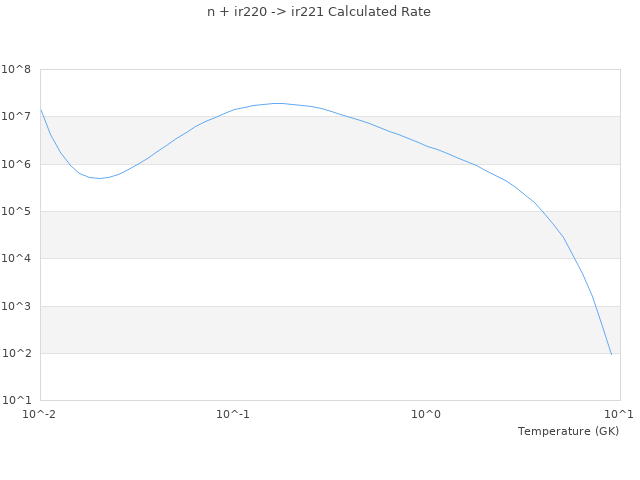

| View Graph | |
