Datapoints for he4 + o26 -> ne30
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.792414e-25 |
| 0.15 | 3.813347e-20 |
| 0.2 | 3.838761e-17 |
| 0.3 | 1.791429e-13 |
| 0.4 | 3.462517e-11 |
| 0.5 | 1.445622e-09 |
| 0.6 | 2.478970e-08 |
| 0.7 | 2.389114e-07 |
| 0.8 | 1.542127e-06 |
| 0.9 | 7.423472e-06 |
| 1 | 2.859351e-05 |
| 1.5 | 3.140366e-03 |
| 2 | 5.566718e-02 |
| 2.5 | 4.016218e-01 |
| 3 | 1.718766e+00 |
| 3.5 | 5.258097e+00 |
| 4 | 1.276243e+01 |
| 4.5 | 2.618248e+01 |
| 5 | 4.729065e+01 |
| 6 | 1.165780e+02 |
| 7 | 2.193439e+02 |
| 8 | 3.391926e+02 |
| 9 | 4.501812e+02 |
| 10 | 5.268014e+02 |

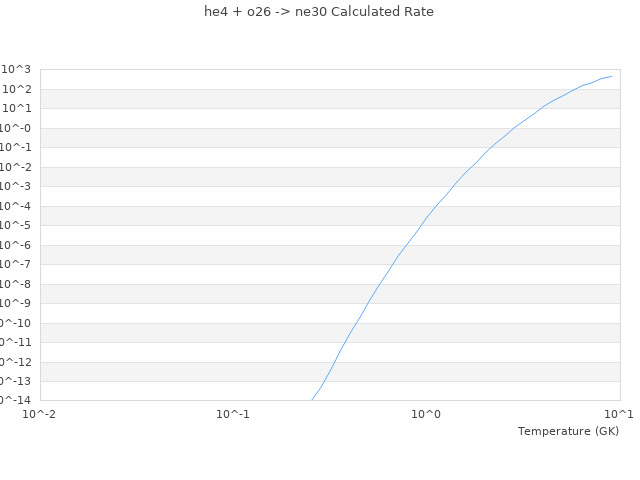

| View Graph | |
