Datapoints for p + ir238 -> pt239
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.648812e-201 |
| 0.15 | 1.415441e-121 |
| 0.2 | 9.938855e-82 |
| 0.3 | 1.677125e-45 |
| 0.4 | 6.355262e-31 |
| 0.5 | 3.231450e-24 |
| 0.6 | 7.221917e-21 |
| 0.7 | 4.467728e-19 |
| 0.8 | 4.888507e-18 |
| 0.9 | 2.310541e-17 |
| 1 | 7.389542e-17 |
| 1.5 | 1.080058e-14 |
| 2 | 3.139117e-12 |
| 2.5 | 8.284998e-10 |
| 3 | 9.340840e-08 |
| 3.5 | 3.382208e-06 |
| 4 | 3.897412e-05 |
| 4.5 | 1.623079e-04 |
| 5 | 2.945971e-04 |
| 6 | 1.848547e-04 |
| 7 | 4.877927e-05 |
| 8 | 2.274928e-05 |
| 9 | 6.258670e-05 |
| 10 | 2.749318e-03 |

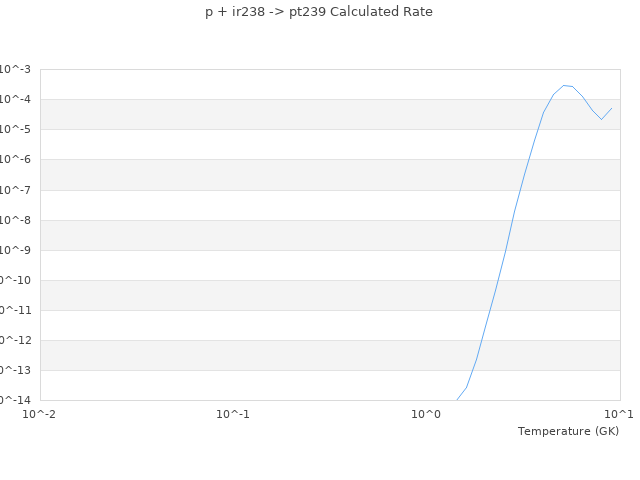

| View Graph | |
