Datapoints for he4 + f17 -> na21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.366867e-26 |
| 0.15 | 3.911744e-21 |
| 0.2 | 5.707783e-18 |
| 0.3 | 4.351805e-14 |
| 0.4 | 1.141790e-11 |
| 0.5 | 5.865321e-10 |
| 0.6 | 1.167479e-08 |
| 0.7 | 1.258018e-07 |
| 0.8 | 8.849964e-07 |
| 0.9 | 4.559071e-06 |
| 1 | 1.854079e-05 |
| 1.5 | 2.378629e-03 |
| 2 | 4.488483e-02 |
| 2.5 | 3.322360e-01 |
| 3 | 1.436391e+00 |
| 3.5 | 4.416239e+00 |
| 4 | 1.077694e+01 |
| 4.5 | 2.231186e+01 |
| 5 | 4.090915e+01 |
| 6 | 1.063380e+02 |
| 7 | 2.187122e+02 |
| 8 | 3.847276e+02 |
| 9 | 6.056864e+02 |
| 10 | 8.777428e+02 |

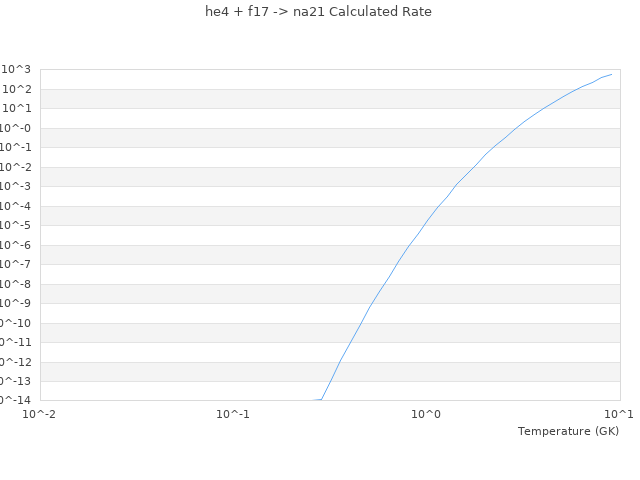

| View Graph | |
