Datapoints for he4 + f18 -> na22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.278973e-26 |
| 0.15 | 2.025095e-21 |
| 0.2 | 2.878613e-18 |
| 0.3 | 2.161304e-14 |
| 0.4 | 5.716267e-12 |
| 0.5 | 2.985657e-10 |
| 0.6 | 6.058201e-09 |
| 0.7 | 6.654499e-08 |
| 0.8 | 4.766294e-07 |
| 0.9 | 2.495647e-06 |
| 1 | 1.029623e-05 |
| 1.5 | 1.381153e-03 |
| 2 | 2.628873e-02 |
| 2.5 | 1.916306e-01 |
| 3 | 8.032557e-01 |
| 3.5 | 2.370584e+00 |
| 4 | 5.519118e+00 |
| 4.5 | 1.086524e+01 |
| 5 | 1.891892e+01 |
| 6 | 4.443719e+01 |
| 7 | 8.334780e+01 |
| 8 | 1.356471e+02 |
| 9 | 2.011403e+02 |
| 10 | 2.801319e+02 |

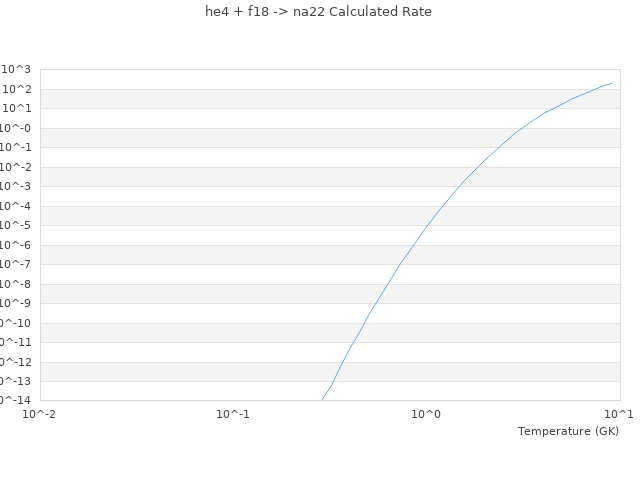

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
