Datapoints for p + f19 -> ne20

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 4.980738e-09
0.15 7.294503e-07
0.2 6.147047e-05
0.3 1.476656e-02
0.4 2.719387e-01
0.5 1.924832e+00
0.6 8.060251e+00
0.7 2.359616e+01
0.8 5.369087e+01
0.9 1.021050e+02
1 1.704830e+02
1.5 7.602470e+02
2 1.517528e+03
2.5 2.212906e+03
3 2.773651e+03
3.5 3.199580e+03
4 3.512219e+03
4.5 3.735619e+03
5 3.890579e+03
6 4.057435e+03
7 4.103468e+03
8 4.080685e+03
9 4.018976e+03
10 3.935795e+03

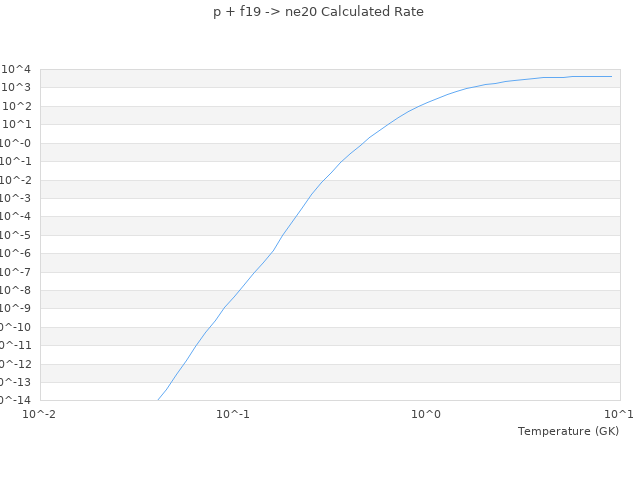

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 4.96E-9 4.9807376847497E-9 0.4181 %
0.4 0.269 0.27193871255672 1.0925 %
1 175 170.48295061281 2.5812 %
2 1490 1517.5279326157 1.8475 %
