Datapoints for he4 + f19 -> na23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.111473e-24 |
| 0.15 | 2.627209e-19 |
| 0.2 | 3.342180e-16 |
| 0.3 | 2.312516e-12 |
| 0.4 | 5.983481e-10 |
| 0.5 | 3.099376e-08 |
| 0.6 | 6.241846e-07 |
| 0.7 | 6.784758e-06 |
| 0.8 | 4.790722e-05 |
| 0.9 | 2.463881e-04 |
| 1 | 9.952831e-04 |
| 1.5 | 1.164876e-01 |
| 2 | 1.894537e+00 |
| 2.5 | 1.181042e+01 |
| 3 | 4.275014e+01 |
| 3.5 | 1.103885e+02 |
| 4 | 2.280713e+02 |
| 4.5 | 4.041050e+02 |
| 5 | 6.419232e+02 |
| 6 | 1.302722e+03 |
| 7 | 2.206680e+03 |
| 8 | 3.368609e+03 |
| 9 | 4.839162e+03 |
| 10 | 6.711797e+03 |

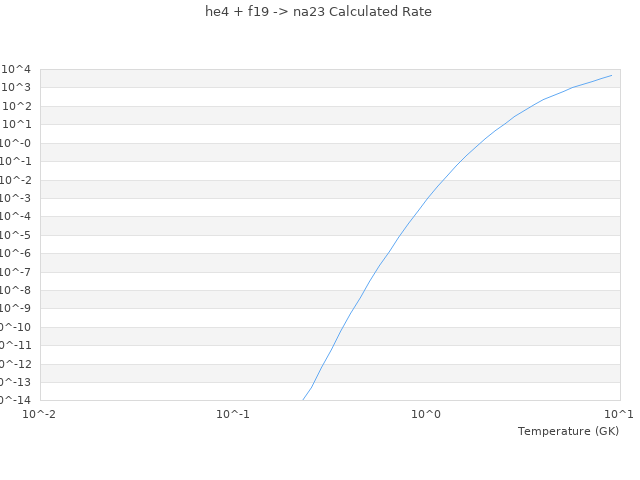

| View Graph | |
