Datapoints for p + f20 -> ne21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.875659e-08 |
| 0.15 | 3.885991e-06 |
| 0.2 | 6.987421e-05 |
| 0.3 | 2.429416e-03 |
| 0.4 | 2.302048e-02 |
| 0.5 | 1.158988e-01 |
| 0.6 | 4.013070e-01 |
| 0.7 | 1.085614e+00 |
| 0.8 | 2.467089e+00 |
| 0.9 | 4.927941e+00 |
| 1 | 8.916727e+00 |
| 1.5 | 6.936032e+01 |
| 2 | 2.390994e+02 |
| 2.5 | 5.567720e+02 |
| 3 | 1.040312e+03 |
| 3.5 | 1.696087e+03 |
| 4 | 2.525055e+03 |
| 4.5 | 3.524770e+03 |
| 5 | 4.688944e+03 |
| 6 | 7.457276e+03 |
| 7 | 1.064583e+04 |
| 8 | 1.393121e+04 |
| 9 | 1.687073e+04 |
| 10 | 1.898311e+04 |

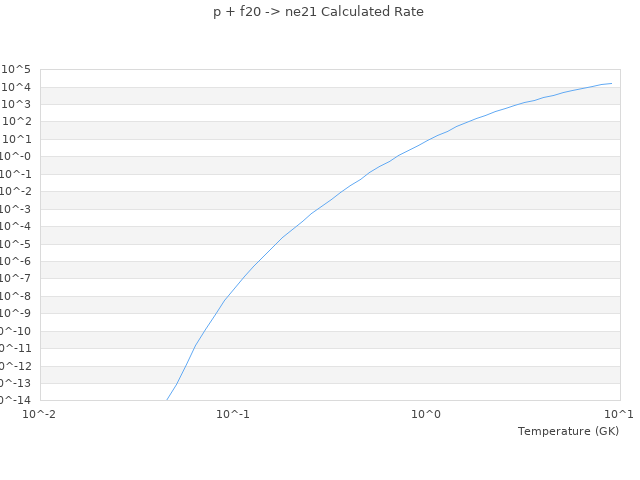

| View Graph | |
