Datapoints for he4 + f20 -> na24
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.917879e-26 |
| 0.15 | 3.441578e-21 |
| 0.2 | 5.328534e-18 |
| 0.3 | 4.561873e-14 |
| 0.4 | 1.337639e-11 |
| 0.5 | 7.606294e-10 |
| 0.6 | 1.658322e-08 |
| 0.7 | 1.937813e-07 |
| 0.8 | 1.465185e-06 |
| 0.9 | 8.049098e-06 |
| 1 | 3.466937e-05 |
| 1.5 | 5.492465e-03 |
| 2 | 1.178536e-01 |
| 2.5 | 9.456183e-01 |
| 3 | 4.301586e+00 |
| 3.5 | 1.364728e+01 |
| 4 | 3.391882e+01 |
| 4.5 | 7.088323e+01 |
| 5 | 1.303818e+02 |
| 6 | 3.372935e+02 |
| 7 | 6.854173e+02 |
| 8 | 1.189177e+03 |
| 9 | 1.849290e+03 |
| 10 | 2.656365e+03 |

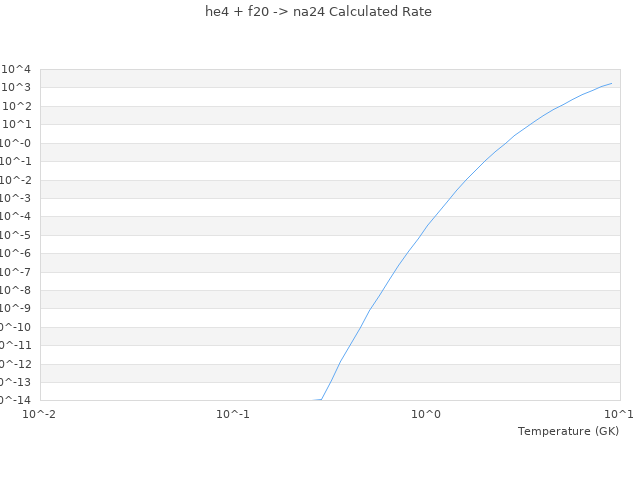

| View Graph | |
