Datapoints for p + f21 -> ne22
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.639112e-08 |
| 0.15 | 3.584438e-06 |
| 0.2 | 6.444989e-05 |
| 0.3 | 2.235505e-03 |
| 0.4 | 2.110390e-02 |
| 0.5 | 1.057499e-01 |
| 0.6 | 3.642175e-01 |
| 0.7 | 9.797234e-01 |
| 0.8 | 2.213677e+00 |
| 0.9 | 4.396657e+00 |
| 1 | 7.911582e+00 |
| 1.5 | 6.012438e+01 |
| 2 | 2.041757e+02 |
| 2.5 | 4.718740e+02 |
| 3 | 8.802656e+02 |
| 3.5 | 1.439314e+03 |
| 4 | 2.156074e+03 |
| 4.5 | 3.035300e+03 |
| 5 | 4.078104e+03 |
| 6 | 6.627652e+03 |
| 7 | 9.659201e+03 |
| 8 | 1.285377e+04 |
| 9 | 1.573316e+04 |
| 10 | 1.775636e+04 |

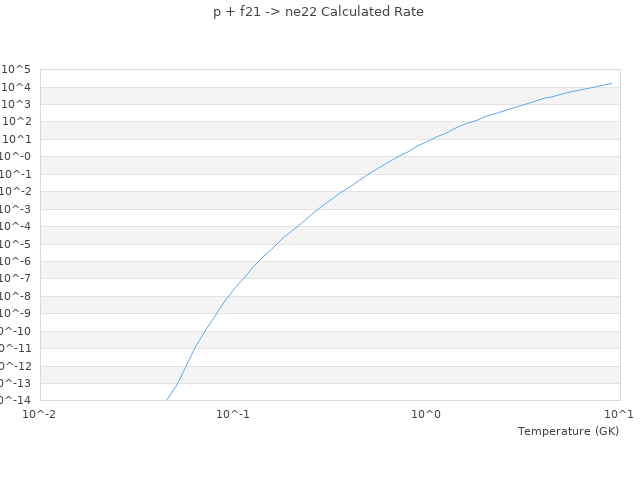

| View Graph | |
