Datapoints for p + f22 -> ne23
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.249835e-08 |
| 0.15 | 1.725629e-06 |
| 0.2 | 3.125662e-05 |
| 0.3 | 1.096949e-03 |
| 0.4 | 1.047814e-02 |
| 0.5 | 5.312436e-02 |
| 0.6 | 1.850563e-01 |
| 0.7 | 5.032074e-01 |
| 0.8 | 1.148713e+00 |
| 0.9 | 2.303733e+00 |
| 1 | 4.183680e+00 |
| 1.5 | 3.307770e+01 |
| 2 | 1.160308e+02 |
| 2.5 | 2.758827e+02 |
| 3 | 5.283065e+02 |
| 3.5 | 8.858067e+02 |
| 4 | 1.360236e+03 |
| 4.5 | 1.963316e+03 |
| 5 | 2.705852e+03 |
| 6 | 4.638453e+03 |
| 7 | 7.160522e+03 |
| 8 | 1.014259e+04 |
| 9 | 1.328451e+04 |
| 10 | 1.613190e+04 |

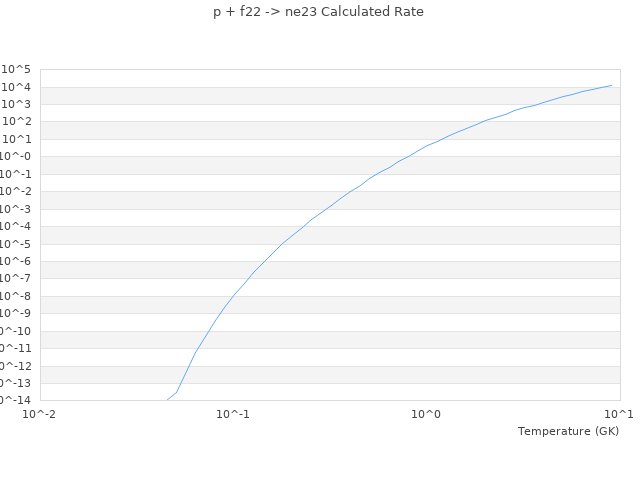

| View Graph | |
