Datapoints for p + ir176 -> n + pt176
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-311 |
| 0.15 | 6.433574e-206 |
| 0.2 | 5.009959e-153 |
| 0.3 | 4.118889e-100 |
| 0.4 | 1.213628e-73 |
| 0.5 | 9.358534e-58 |
| 0.6 | 3.687470e-47 |
| 0.7 | 1.376946e-39 |
| 0.8 | 6.640265e-34 |
| 0.9 | 1.765347e-29 |
| 1 | 6.180405e-26 |
| 1.5 | 3.016524e-15 |
| 2 | 8.096103e-10 |
| 2.5 | 1.739284e-06 |
| 3 | 3.340351e-04 |
| 3.5 | 1.600279e-02 |
| 4 | 3.179735e-01 |
| 4.5 | 3.465975e+00 |
| 5 | 2.446781e+01 |
| 6 | 4.855014e+02 |
| 7 | 4.038786e+03 |
| 8 | 1.786757e+04 |
| 9 | 4.785898e+04 |
| 10 | 8.380705e+04 |

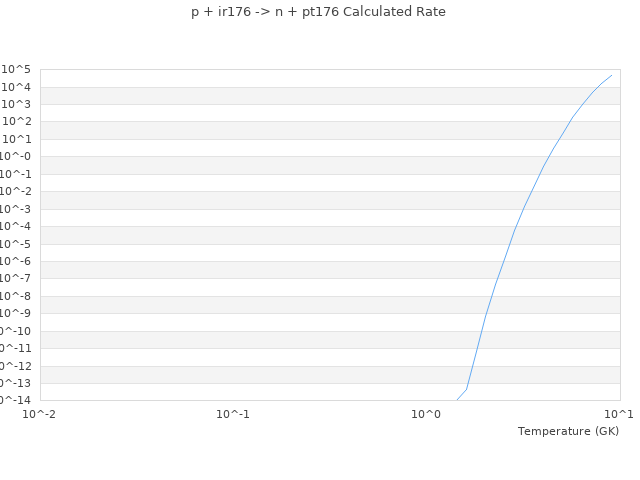

| View Graph | |
