Datapoints for p + ne19 -> na20

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 6.389936e-12
0.15 9.986861e-10
0.2 2.402104e-08
0.3 1.626251e-06
0.4 1.514441e-04
0.5 4.742810e-03
0.6 4.743554e-02
0.7 2.399672e-01
0.8 7.930053e-01
0.9 1.976582e+00
1 4.050301e+00
1.5 3.132828e+01
2 7.865577e+01
2.5 1.283929e+02
3 1.706494e+02
3.5 2.029879e+02
4 2.264759e+02
4.5 2.433285e+02
5 2.558506e+02
6 2.753504e+02
7 2.951800e+02
8 3.185629e+02
9 3.435624e+02
10 3.654203e+02

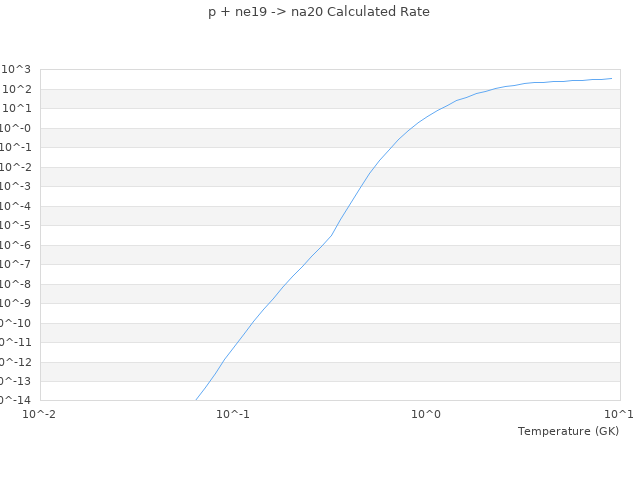

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 6.4E-12 6.3899355202411E-12 0.1573 %
0.4 0.000151 0.00015144413753636 0.2941 %
1 4.07 4.0503012475828 0.484 %
2 78.2 78.655770155576 0.5828 %
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
