Datapoints for n + pt209 -> he4 + os206
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.073664e-49 |
| 0.15 | 9.840634e-36 |
| 0.2 | 2.782591e-29 |
| 0.3 | 3.789421e-23 |
| 0.4 | 2.925386e-20 |
| 0.5 | 1.422060e-18 |
| 0.6 | 1.953762e-17 |
| 0.7 | 1.390904e-16 |
| 0.8 | 6.807893e-16 |
| 0.9 | 2.650067e-15 |
| 1 | 8.892342e-15 |
| 1.5 | 1.283531e-12 |
| 2 | 8.126129e-11 |
| 2.5 | 3.237358e-09 |
| 3 | 8.890638e-08 |
| 3.5 | 1.759134e-06 |
| 4 | 2.590925e-05 |
| 4.5 | 2.921344e-04 |
| 5 | 2.585615e-03 |
| 6 | 1.069612e-01 |
| 7 | 2.139797e+00 |
| 8 | 2.344325e+01 |
| 9 | 1.555788e+02 |
| 10 | 6.791495e+02 |

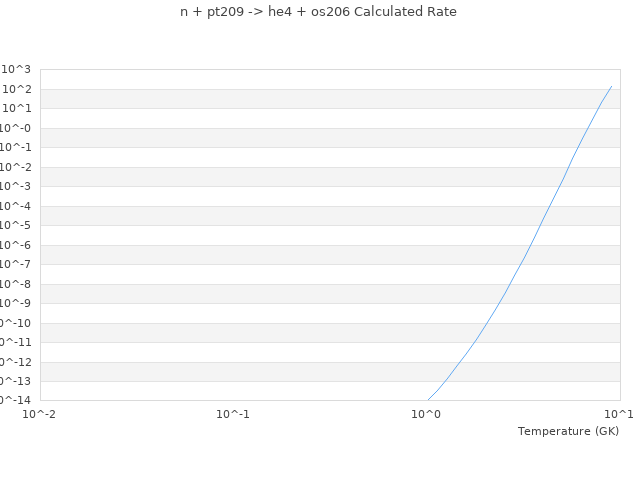

| View Graph | |
