Datapoints for p + pt211 -> he4 + ir208
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.750809e-238 |
| 0.15 | 1.047394e-153 |
| 0.2 | 2.928054e-109 |
| 0.3 | 5.454443e-66 |
| 0.4 | 1.371742e-46 |
| 0.5 | 1.635435e-36 |
| 0.6 | 9.338211e-31 |
| 0.7 | 3.233996e-27 |
| 0.8 | 6.795462e-25 |
| 0.9 | 2.852093e-23 |
| 1 | 4.599712e-22 |
| 1.5 | 2.267171e-18 |
| 2 | 1.163908e-15 |
| 2.5 | 3.233892e-13 |
| 3 | 4.669064e-11 |
| 3.5 | 3.163795e-09 |
| 4 | 9.944929e-08 |
| 4.5 | 1.536570e-06 |
| 5 | 1.285950e-05 |
| 6 | 2.284320e-04 |
| 7 | 1.447766e-03 |
| 8 | 7.979338e-03 |
| 9 | 8.304161e-02 |
| 10 | 3.150857e+00 |

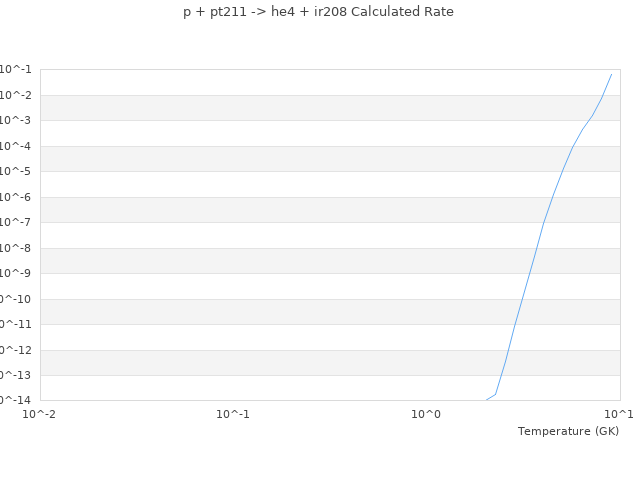

| View Graph | |
