Datapoints for he4 + ne21 -> mg25

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 3.549604e-28
0.15 8.752558e-23
0.2 2.142201e-19
0.3 3.614608e-15
0.4 1.602434e-12
0.5 1.184707e-10
0.6 3.082213e-09
0.7 4.093961e-08
0.8 3.436136e-07
0.9 2.078994e-06
1 9.841021e-06
1.5 2.197168e-03
2 5.084124e-02
2.5 4.045850e-01
3 1.882536e+00
3.5 6.330542e+00
4 1.685600e+01
4.5 3.767623e+01
5 7.383046e+01
6 2.146947e+02
7 4.868993e+02
8 9.420235e+02
9 1.641597e+03
10 2.668297e+03

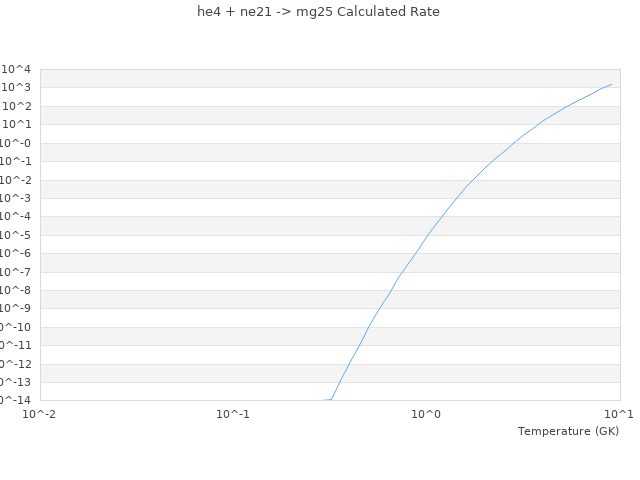

View Graph

Comparison with Literature Sources

T9 Literature Calculated (with SEF*) Difference
0.1 3.56E-28 3.54960393635E-28* 0.292 %
0.4 1.6E-12 1.60243438643E-12* 0.1521 %
1 9.82E-6 9.88070214943E-6* 0.6181 %
2 0.0508 0.0523220629109* 2.9962 %
