Datapoints for p + mg23 -> al24

Back to rate

Calculate Rate at a
Specific Temperature

T9: GK
Results: 0 cm3 mol-1 s-1

Data Points for
Standard Temperatures

Temperature Value
0.1 5.050741e-12
0.15 1.527226e-09
0.2 9.286135e-08
0.3 2.238066e-04
0.4 1.484419e-02
0.5 1.744709e-01
0.6 8.746558e-01
0.7 2.718995e+00
0.8 6.298654e+00
0.9 1.201998e+01
1 2.005022e+01
1.5 8.926123e+01
2 1.810602e+02
2.5 2.720404e+02
3 3.571810e+02
3.5 4.405878e+02
4 5.289813e+02
4.5 6.289089e+02
5 7.458314e+02
6 1.046451e+03
7 1.452413e+03
8 1.973270e+03
9 2.611168e+03
10 3.363857e+03

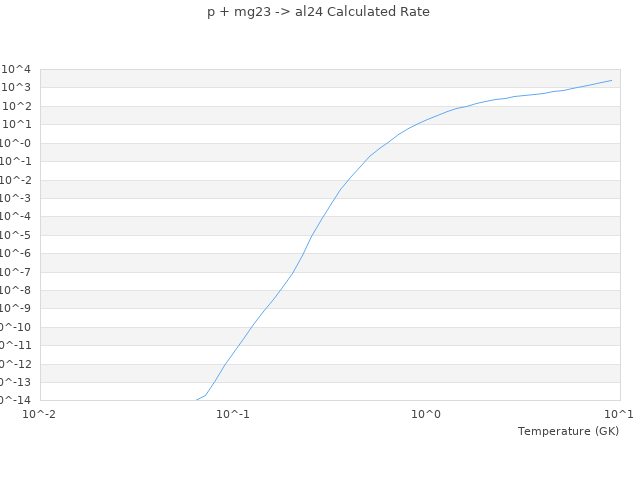

View Graph

Comparison with Literature Sources

T9 Literature Calculated Difference
0.1 5.01E-12 5.0507411195424E-12 0.8132 %
0.4 0.0148 0.014844191840888 0.2986 %
1 20 20.050222745202 0.2511 %
2 181 181.06016622451 0.0332 %
