Datapoints for n + tl176 -> tl177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.087935e+08 |
| 0.15 | 5.442386e+08 |
| 0.2 | 5.641898e+08 |
| 0.3 | 4.963713e+08 |
| 0.4 | 4.186781e+08 |
| 0.5 | 3.602088e+08 |
| 0.6 | 3.187706e+08 |
| 0.7 | 2.894444e+08 |
| 0.8 | 2.684649e+08 |
| 0.9 | 2.532842e+08 |
| 1 | 2.422029e+08 |
| 1.5 | 2.180977e+08 |
| 2 | 2.124858e+08 |
| 2.5 | 2.078278e+08 |
| 3 | 1.983713e+08 |
| 3.5 | 1.827862e+08 |
| 4 | 1.620141e+08 |
| 4.5 | 1.380936e+08 |
| 5 | 1.133216e+08 |
| 6 | 6.861272e+07 |
| 7 | 3.655193e+07 |
| 8 | 1.740560e+07 |
| 9 | 7.512416e+06 |
| 10 | 2.974066e+06 |

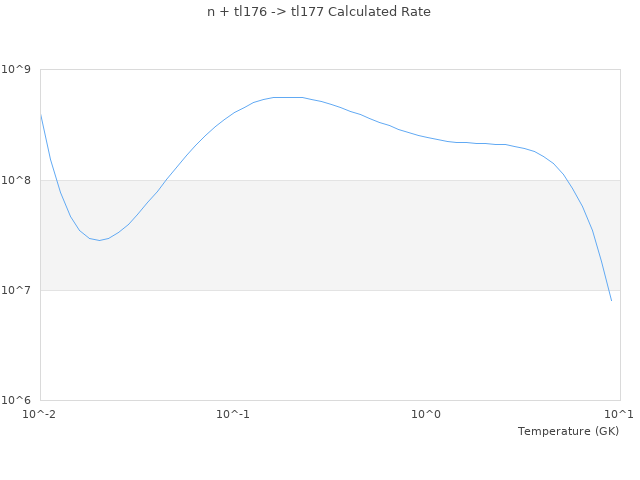

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
