Datapoints for p + tl176 -> pb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.900881e-146 |
| 0.15 | 1.066399e-86 |
| 0.2 | 5.140551e-58 |
| 0.3 | 7.419875e-33 |
| 0.4 | 3.563598e-23 |
| 0.5 | 7.398379e-19 |
| 0.6 | 1.045988e-16 |
| 0.7 | 1.697652e-15 |
| 0.8 | 1.061261e-14 |
| 0.9 | 4.437593e-14 |
| 1 | 1.606337e-13 |
| 1.5 | 1.224050e-10 |
| 2 | 1.411321e-07 |
| 2.5 | 7.741680e-05 |
| 3 | 1.127708e-02 |
| 3.5 | 3.923399e-01 |
| 4 | 3.680785e+00 |
| 4.5 | 1.154943e+01 |
| 5 | 1.549232e+01 |
| 6 | 5.746740e+00 |
| 7 | 1.118582e+00 |
| 8 | 5.057420e-01 |
| 9 | 1.774203e+00 |
| 10 | 1.277594e+02 |

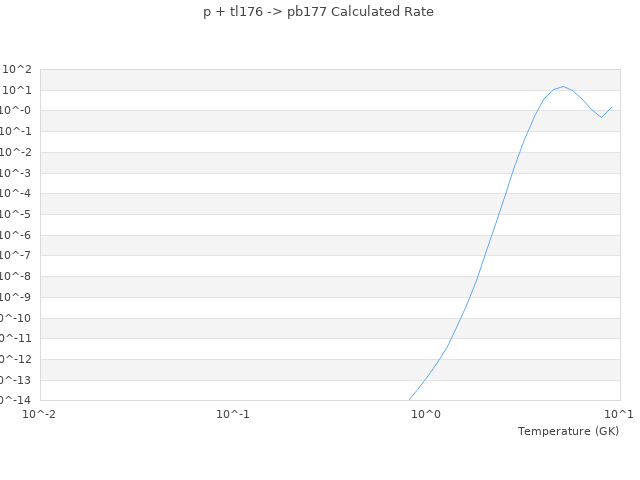

| View Graph | |
