Datapoints for n + pb176 -> pb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.838981e+08 |
| 0.15 | 1.948565e+08 |
| 0.2 | 2.674423e+08 |
| 0.3 | 5.064121e+08 |
| 0.4 | 7.963049e+08 |
| 0.5 | 1.055305e+09 |
| 0.6 | 1.233507e+09 |
| 0.7 | 1.318947e+09 |
| 0.8 | 1.324285e+09 |
| 0.9 | 1.271742e+09 |
| 1 | 1.183455e+09 |
| 1.5 | 6.632749e+08 |
| 2 | 3.462846e+08 |
| 2.5 | 1.931244e+08 |
| 3 | 1.177805e+08 |
| 3.5 | 7.790247e+07 |
| 4 | 5.494446e+07 |
| 4.5 | 4.057779e+07 |
| 5 | 3.084853e+07 |
| 6 | 1.833320e+07 |
| 7 | 1.043566e+07 |
| 8 | 5.276904e+06 |
| 9 | 2.239397e+06 |
| 10 | 7.637392e+05 |

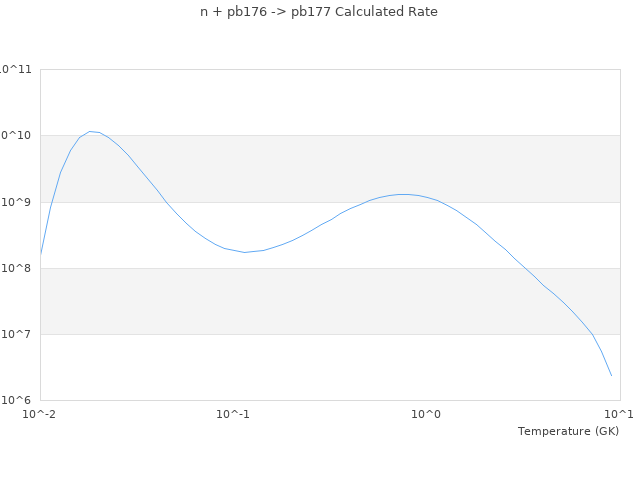

| View Graph | |
