Datapoints for he4 + tl220 -> p + pb223
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | 0.000000e+00 |
| 0.3 | 1.773535e-251 |
| 0.4 | 1.917345e-185 |
| 0.5 | 3.334296e-147 |
| 0.6 | 1.259513e-122 |
| 0.7 | 1.181769e-105 |
| 0.8 | 2.740845e-93 |
| 0.9 | 6.812908e-84 |
| 1 | 1.659205e-76 |
| 1.5 | 1.164376e-54 |
| 2 | 3.075080e-43 |
| 2.5 | 1.021456e-35 |
| 3 | 3.348905e-30 |
| 3.5 | 6.087847e-26 |
| 4 | 1.447045e-22 |
| 4.5 | 7.486104e-20 |
| 5 | 1.191126e-17 |
| 6 | 2.330904e-14 |
| 7 | 4.959201e-12 |
| 8 | 3.374430e-10 |
| 9 | 1.672012e-08 |
| 10 | 1.156580e-06 |

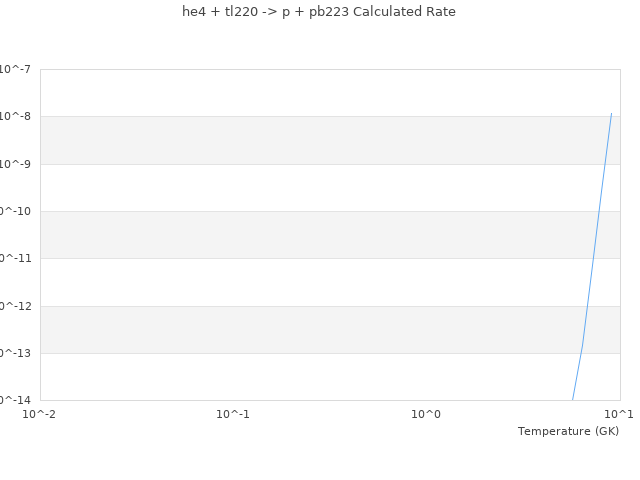

| View Graph | |
