Datapoints for p + o17 -> he4 + n14
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.998323e-05 |
| 0.15 | 3.563758e-03 |
| 0.2 | 7.878356e-02 |
| 0.3 | 1.684544e+00 |
| 0.4 | 2.649223e+01 |
| 0.5 | 2.728593e+02 |
| 0.6 | 1.388488e+03 |
| 0.7 | 4.558517e+03 |
| 0.8 | 1.133245e+04 |
| 0.9 | 2.336572e+04 |
| 1 | 4.222593e+04 |
| 1.5 | 2.805512e+05 |
| 2 | 8.283458e+05 |
| 2.5 | 1.748314e+06 |
| 3 | 3.090770e+06 |
| 3.5 | 4.898782e+06 |
| 4 | 7.203885e+06 |
| 4.5 | 1.002098e+07 |
| 5 | 1.334440e+07 |
| 6 | 2.137206e+07 |
| 7 | 3.078310e+07 |
| 8 | 4.076753e+07 |
| 9 | 5.034802e+07 |
| 10 | 5.855717e+07 |

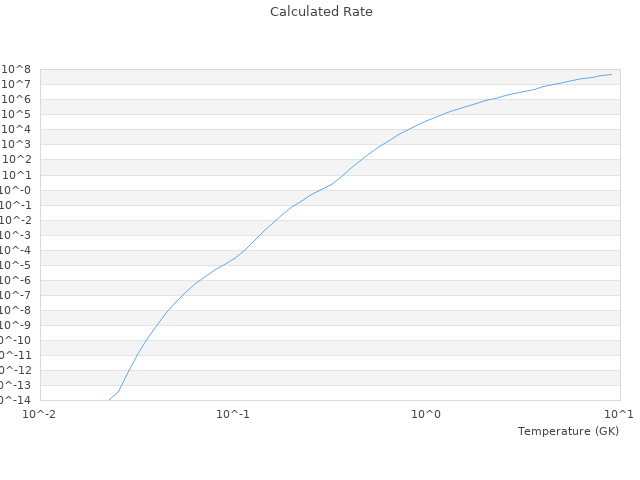

| View Graph | |
